Core Solutions
PCB Design
High-Precision Test PCB Design

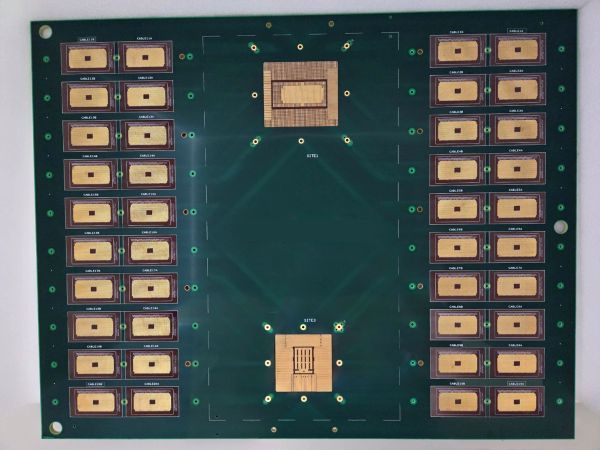

Advanced PCB design for probe cards, load boards, burn-in boards, MLO/MLC and semiconductor test applications.
PCB Fabrication+PCBA
Advanced PCB Fabrication & Assembly
High-layer, large-size and high-precision PCB manufacturing with PCBA and quality verification support.
Hi-Fix & Cable Assembly
Customized ATE Interface Solutions

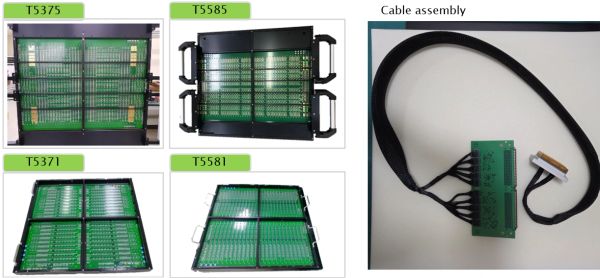

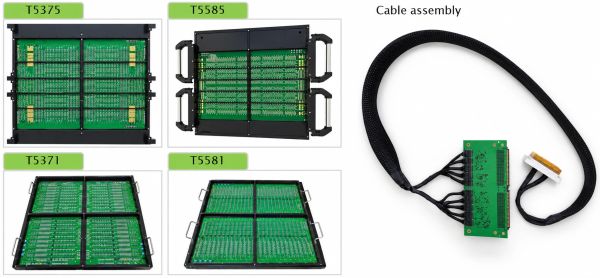

Hi-Fix, interface PCB and cable assemblies customized for testers, handlers and parallel test environments.
Probe Pin & Pogo Pin
Fine-Pitch Contact Solutions

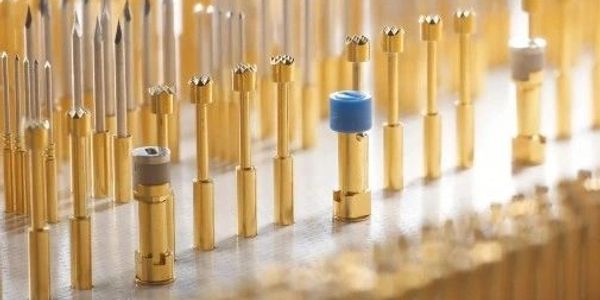

MEMS probe pins, M-Pogo pins and customized contact solutions for reliable semiconductor testing.
Stiffener & Mechanical Parts
Precision Mechanical Integration

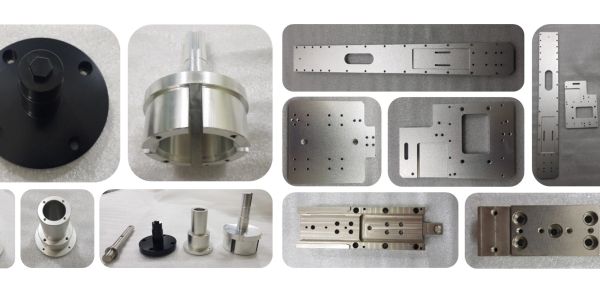

Customized stiffeners and mechanical components for stable docking, alignment and board support.
Front-End & Back-End Semiconductor Equipment
Semiconductor Equipment Solutions
Supporting front-end and back-end semiconductor processes with reliable equipment and process-related solutions.
HLS provides equipment solutions including chemical supply systems, wet systems, reflow systems, sputter systems, evaporation systems, laser cutting systems.
We connect customers with practical equipment solutions for research, process development and production needs.
Femto Science
Femto Science Plasma & Parylene Coating Solutions
Advanced plasma and parylene coating systems for surface treatment, thin-film deposition, etching, cleaning and research applications.

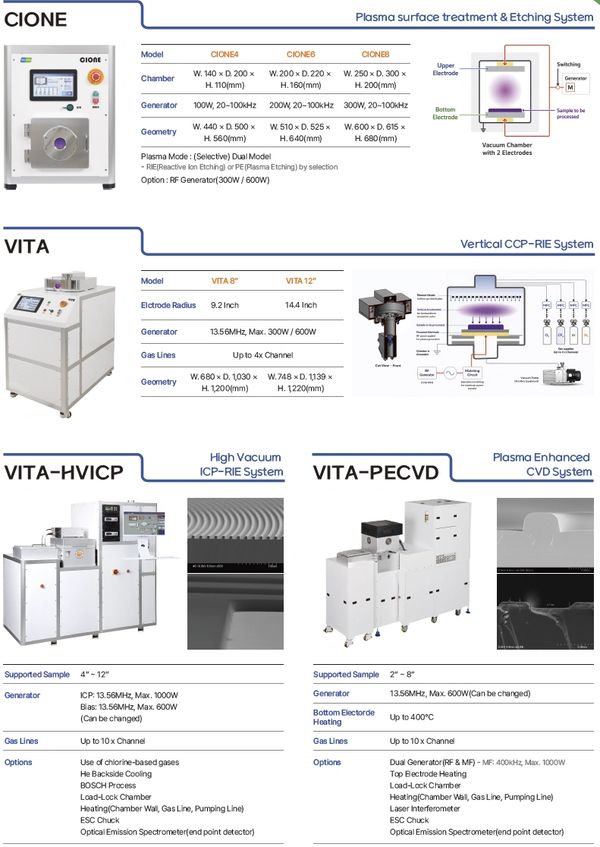

HLS supports Femto Science equipment solutions in Taiwan, including plasma systems, parylene coating systems, ICP-RIE and PECVD platforms.
We help customers select suitable equipment for semiconductor, material, polymer, biomedical and academic research applications.systems, wet systems, reflow systems, sputter systems, evaporation systems, laser cutting systems and plasma systems.
We connect customers with practical equipment solutions for research, process development and production needs.
